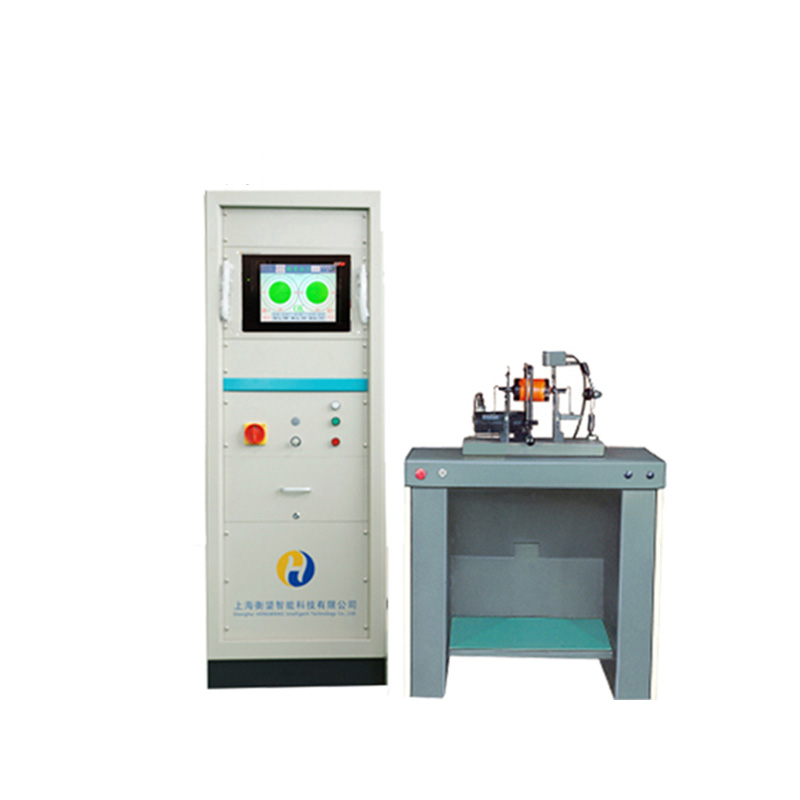

Hard Bearing Balancing Machine H1BK

Hard Bearing Balancing Machine H1BK

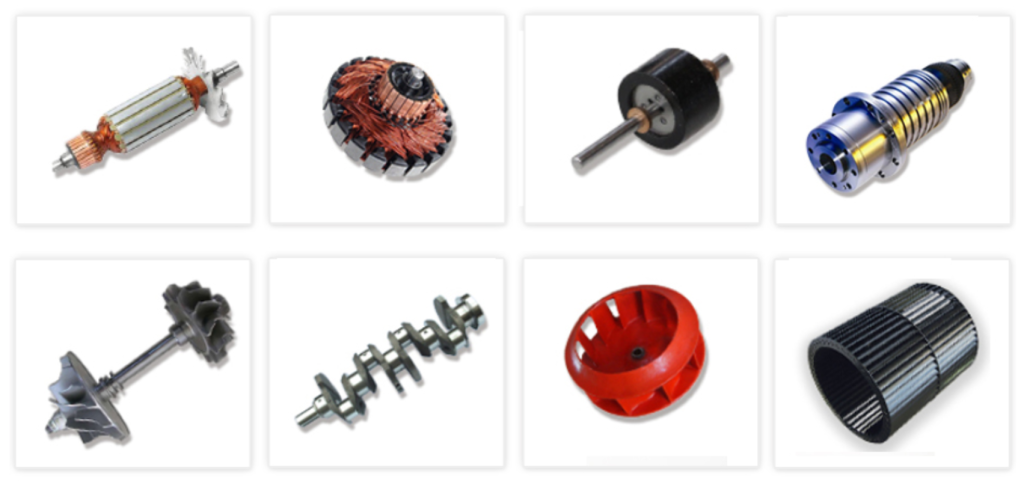

This machine is especially suitable for balancing the micro and small motor rotors, turbocharger androtors of small automobile air conditioner
Product Details
Parameters
Inquire

This machine is especially suitable for balancing the micro and small motor rotors, turbocharger androtors of small automobile air conditioner.

PFEATURES

01

Integral H-type support frame, lightweight and reliable structure, small damping vibration system, good rigidity.

02

Each of the accessories are brand-name raw materials, such as gear box, rolling bearings, low-voltage electrical components;

03

Strict and complete quality system, perfect the complete process, detection means and various gold processing equipment configuration, to ensure product quality;

04

Perfect comprehensive supporting ability, can provide flexible and diverse choices, to provide you with optimized product configuration;

Type of machineH1BK
Max. mass of workpiece10kg
Max. diameter of workpieceФ 360mm
Distance between two bearing supportsof the workpiece journal36~450mm
Journal diameterof workpieceStandard roller supportФ5~Ф22mm
Up to (optional)Ф50mm
Diameter range in the driving position of beltФ 10~Ф 150mm
Balancing speed for driven diameterp 100mm0~1500r/min
Motor power0.18KW(AC)
Min.achieveable residual unbalanceEmar/per planes0.05g.mm/kg
Unbalance reduction ratio URR95%
Dimension(LxWxH)900x650x1220mm
